Split Butterfly Valve BV-15
Technical Features
Size: DN50-DN300/ 2"-12"
Working Pressure: 10 bar
Design Standard: API 609
Test Standard: API 598
Flange Standard: ASME / ANSI B16.42 Class 150 or BS EN 1092-2 PN16
Mounting Plate Standard: ISO 5211
Face to Face Standard: BS EN558-1
Working Temperature -20°C to 180 °C .

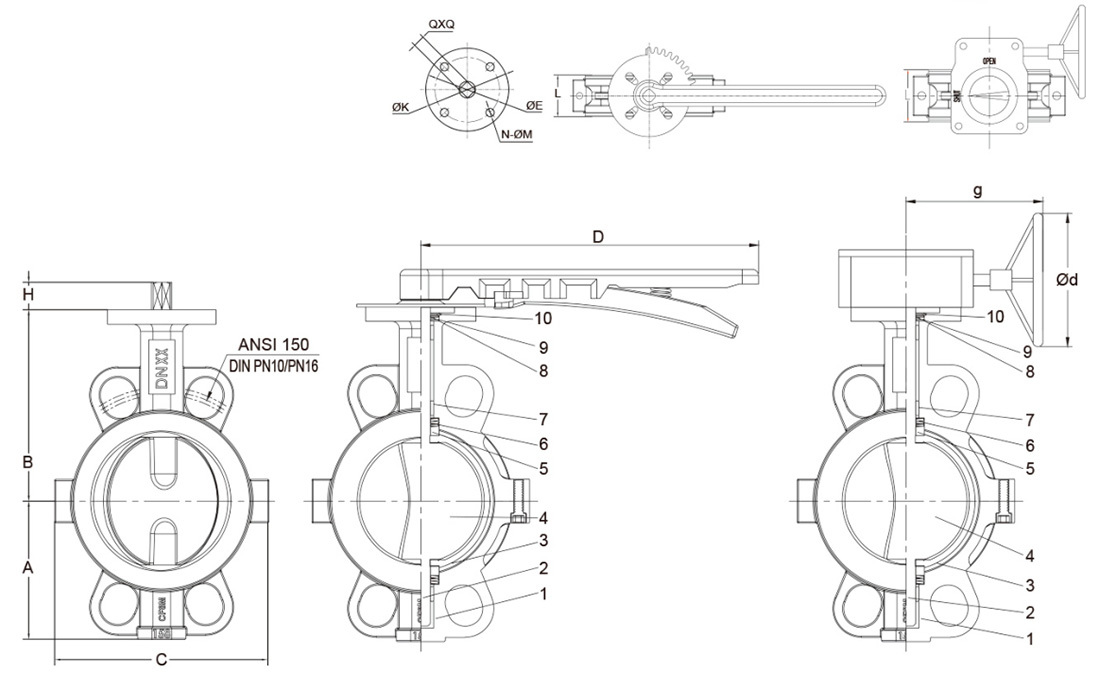

Valve Material List
|
NO. |
Description |
Material |
|
1 |
Body |
CF8M |
|
2 |
Shaft |
SS316 |
|
3 |
Seat |
PTFE + EPDM |
|
4 |
Disc |
CF8M |
|
5 |
Pressing Sleeve |
FRP |
|
6 |
Butterfly Spring |
SS304 |
|
7 |
Shaft Sleeve |
FRP |
|
8 |
Circlip for Shaft |
SS304 |
|
9 |
Cushion |
SS304 |
|
10 |
Circlip for Hole |
SS304 |

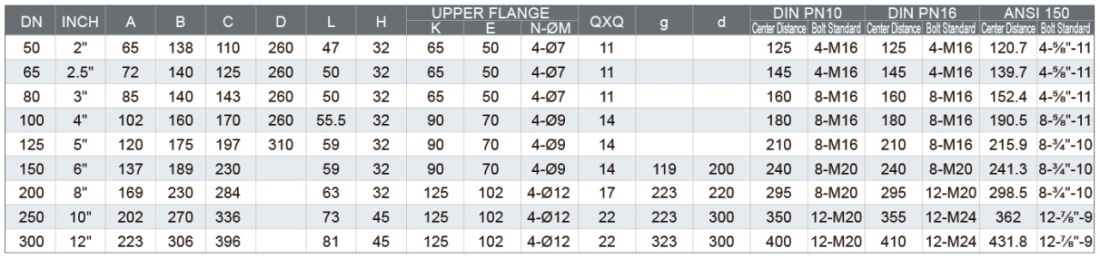

Dimensions
