Class 125 Outside Screw & Yoke Globe Valve GLV-01
Technical Features
Size: DN40-DN900/ 2"-12"
Working Pressure: Class 125
Design Standard: MSS SP-85
Test Standard: API 598
Flange Standard: ASME / ANSI B16.1 Class 125 or 16 .42 Class 150 orBS EN 1092-2 PN16
Face to Face Standard: ASME B16.10 or BS EN558-1
Working Temperature: -20°C to 180°C .
Note: NSF 61 and NSF 372 approval available for 2"-10"
Valve Material List
|
NO. |
Part |
Material |
|
1 |
Body |
Ductile lron / Cast Iron |
|
2 |
Seat Rings |
Bronze |
|
3 |
Reaction Member |
Brass |
|
4 |
Disc |
Bronze |
|
5 |
Gasket |
Brass |
|
6 |
Swivel Nut |
Brass |
|
7 |
Bolts |
Steel |
|
8 |
Body Gasket |
Staipless Steel Spiral-wound |
|
9 |
Bonnet |
Ductile lron/ Cast lron |
|
10 |
Packing |
Graphite |
|
11 |
Packing Gland |
Brass |
|
12 |
Gland Follower |
Ductile Iron |
|
13 |
Gland Follower Bolts |
Steel |
|
14 |
Gland Follower Nuts |
Steel |
|
15 |
Stem |
Brass |
|
16 |
Yoke Bushing |
Bronze |
|
17 |
Screw |
Steel |
|
18 |
Handwheel |
Ductile Iron / Cast lron |
|
19 |
Identification Plate |
Aluminium |
|
20 |
Washer |
Steel |
|
21 |
Handwheel Nut |
Ductile lron |

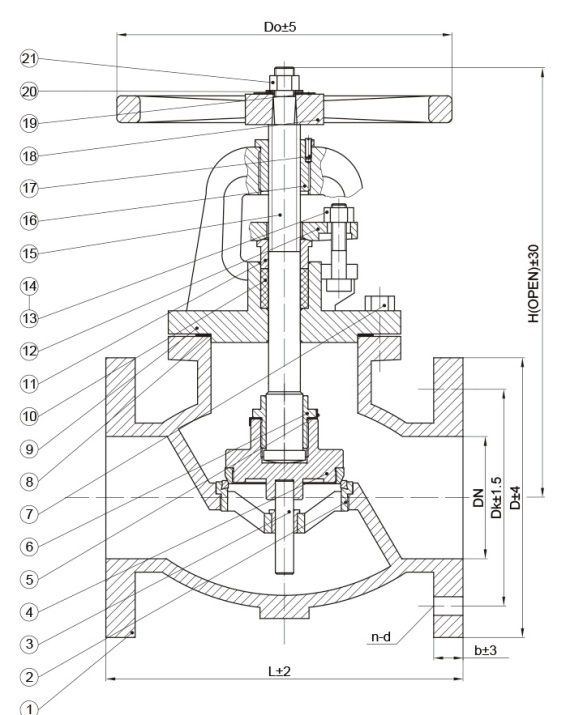

Dimensions
|
DN |
INCH |
L |
D |
b |
Do |
ANSI 150 |
H |
|
| DK | n-d | |||||||
|
50 |
2" |
203 |
152 |
15.9 |
178 |
120.7 |
4-19 |
295 |
|
65 |
25" |
216 |
178 |
18 |
178 |
1397 |
4-19 |
330 |
|
80 |
3" |
241.3 |
191 |
19 |
200 |
152.4 |
4-19 |
365 |
|
100 |
4" |
292 |
229 |
24 |
254 |
190.5 |
8-19 |
400 |
|
125 |
5" |
330 |
254 |
23.8 |
300 |
215.9 |
8-22 |
450 |
|
150 |
6" |
356 |
279.4 |
25 |
300 |
241.3 |
8-22 |
525 |
|
200 |
8" |
495.3 |
343 |
28.6 |
348 |
298.5 |
8-22 |
595 |
|
250 |
10” |
622 |
406 |
30.2 |
400 |
362 |
12-15 |
685 |
|
300 |
12" |
6985 |
488 |
31.8 |
457 |
431.8 |
12-25 |
830 |
