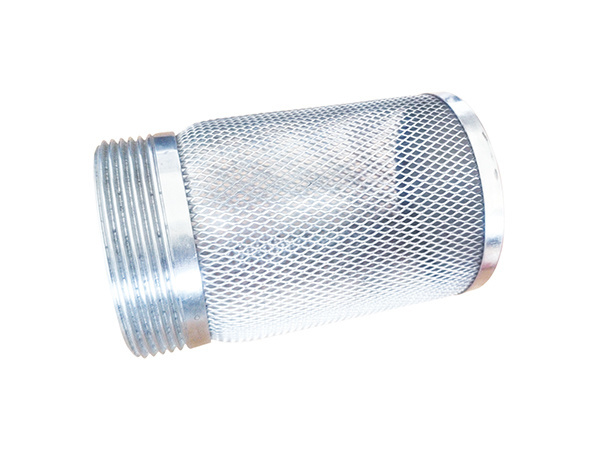

Strainer S02
Technical Features
Size: DN15-DN100 / 0.5"-4'
Working Pressure: 200PSI/PN10/PN16Test Standard: API598
Working Temperature: -10 to 200℃
Dimensions
|
DN |
INCH |
B |
C |
D |
E |
F |
G |
H |
WEIGHT(gr) |
|
15 |
0.5" |
56.5 |
17 |
22 |
23 |
4 |
10 |
15 |
16 |
|
20 |
0.75" |
62.5 |
22 |
28 |
29 |
4 |
10 |
15 |
22 |
|
25 |
1" |
70 |
28.5 |
36 |
37 |
4 |
10 |
15 |
34 |
|
32 |
1.25" |
80 |
36.5 |
43 |
44 |
5 |
14 |
20 |
54 |
|
40 |
1.5" |
90 |
42.5 |
48 |
49 |
5 |
14 |
20 |
64 |
|
50 |
2" |
100 |
54.5 |
61 |
62 |
5.5 |
14 |
20 |
96 |
|
65 |
2.5" |
115 |
70 |
79.5 |
80.5 |
5.5 |
16 |
25 |
136 |
|
80 |
3" |
125 |
82 |
92 |
93 |
6 |
16 |
25 |
156 |
|
100 |
4" |
145 |
107 |
116 |
117 |
6 |
16 |
25 |
202 |
